BYNAV M20 RTK GNSS MINER FOR ONOCOY + OTHER DEPIN
- The M20 RTK GNSS Miner with Built-in RF Splitter is a high-precision GNSS positioning system based on the Bynav M20 module.
- Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.
OVERVIEW

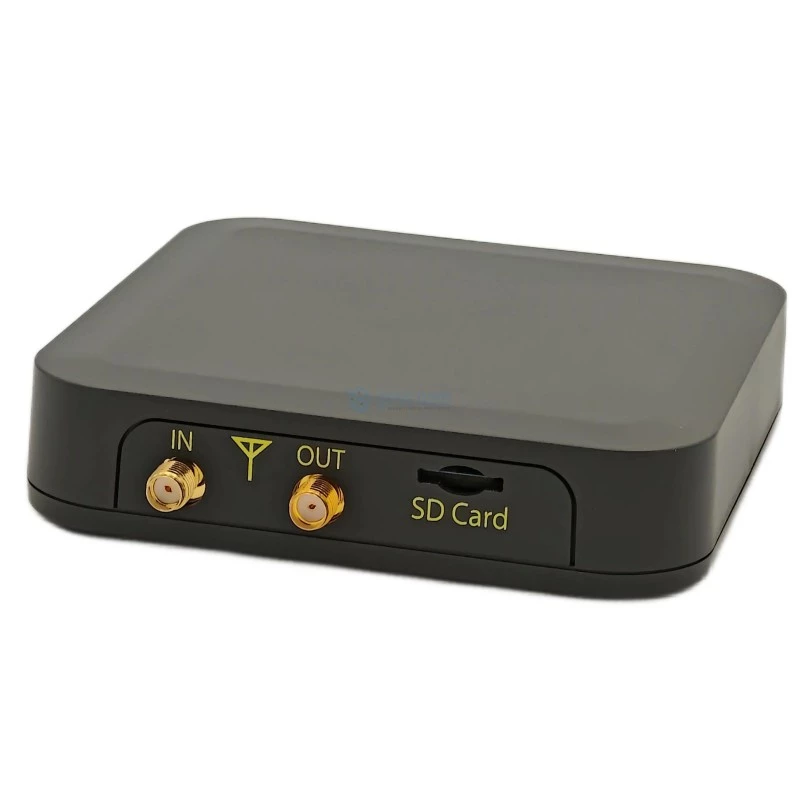

The M20 RTK GNSS Miner with Built-in RF Splitter is a high-precision GNSS positioning system based on the Bynav M20 module.
M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports BDS-2 B1I, B2I, B3I; BDS-3 B1I, B1C\*, B2a, B2b\*, B3I; GPS: L1 C/a, L1c\*, L2, L5; Glonass G1, G2; Galileo E1, E5a, E5b, E6\*; QZSS L1 C/a, L1C, L2, L5, L6\*(CLAS); NavIC I5\*; SBAS\* L1 C/A. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.
