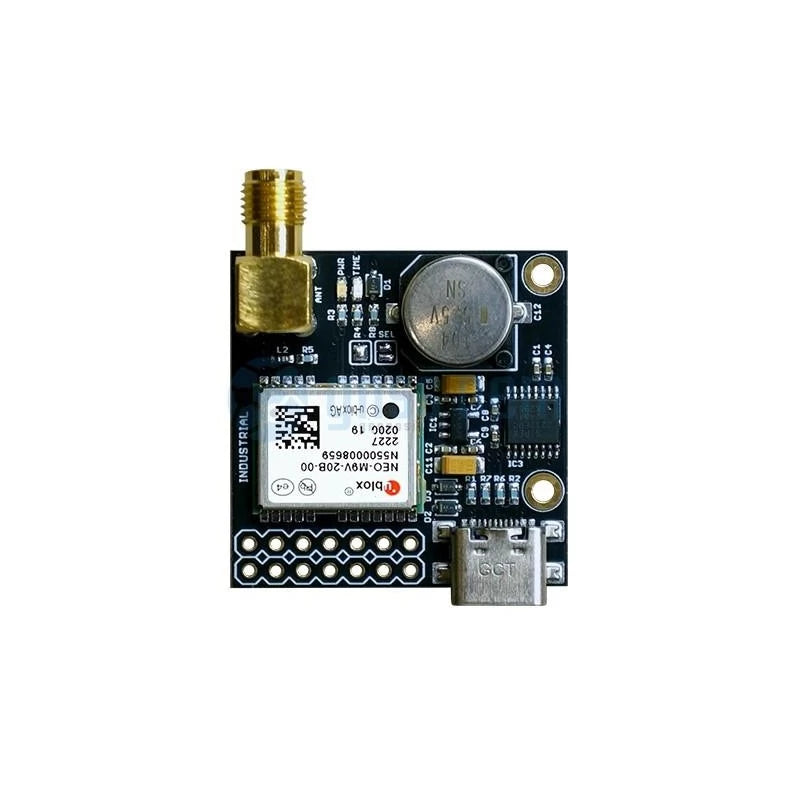

NEO-M9V RS232 Industrial GNSS UDR/ADR Module w/ SMA
VISUAL REFERENCE
SWIPE / TAP TO ZOOM

NEO-M9V RS232 INDUSTRIAL GNSS UDR/ADR MODULE W/ SMA

BRAND: Eltehs SIA
SKU: XDT-EL0358
NDAA CompliantMade in EU
$117.58USD
AVAILABLELEAD TIME: 5–7 WEEKDAYS
SHIPS FROM VENTURA, CA
  • On-board low noise 3.3V voltage regulator and RF filter for noise blocking
  • USB type C, I2C, SPI, UART (Tx, Rx), RS232 interface DIR pin, WOM pin, WheelTick Pin, SAFEBoot pin, Time Pulse pin RAW sensor data out
  • Support active antenna
  • U-center Evaluation Software
  • Time pulse LED, Power LED
1

OVERVIEW

NEO-M9V RS232 INDUSTRIAL with USB type C GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS UDR and ADR receiver EVAL module with SMA antenna connector USB type C, I2C, UART, SPI and RS232 interface.

NEO-M9V RS232 INDUSTRIAL with USB type C, SPI, UART Reference Board with SMA antenna connectors for your UDR and ADR systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-M9V module Based on the ultra-robust M9 platform, NEO-M9V is the first u-blox module to include both UDR and ADR options integrated into one receiver. The module also includes various dynamic models for after-market vehicles, motorcycles, and micromobility applications. All the components needed are on the module, including IMU. This makes the dead reckoning technology accessible and easy to use. Furthermore, the whole solution runs on the module which means that it is not necessary to run external libraries on the host.

This NEO-M9V GNSS module with dead reckoning technology delivers three times better accuracy than GNSS-only receivers, enabling a smooth urban navigation or tracking experience. In challenging environments, GNSS-only receivers typically have many outliers. In such conditions, statistical accuracy can easily exceed 10 meters. With NEO-M9V, there are few or no outliers. In typical urban scenarios, NEO-M9V offers sub-5-meter accuracy.

Maximum position availability is guaranteed, thanks to the concurrent reception of four global navigation satellite systems (GPS, Galileo, GLONASS, and BeiDou) and dead reckoning technology. UDR enables fast time to market, and ADR improves the accuracy performance if there are long GNSS outages. Excellent RF interference mitigation thanks to SAW/LNA enables simple and fast RF designs including considerable cost savings from reduced design efforts.

This product comes with 1 years worldwide warranty.

  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • On-board low noise 3.3V voltage regulator and RF filter for noise blocking
  • USB type C, I2C, SPI, UART (Tx, Rx), RS232 interface DIR pin, WOM pin, WheelTick Pin, SAFEBoot pin, Time Pulse pin RAW sensor data out
  • Support active antenna
  • u-center Evaluation Software
  • Time pulse LED, Power LED
  • SMA antenna connectors
  • Support active antenna
  • Extensive visualization and evaluation features
  • Backup supercapacitor

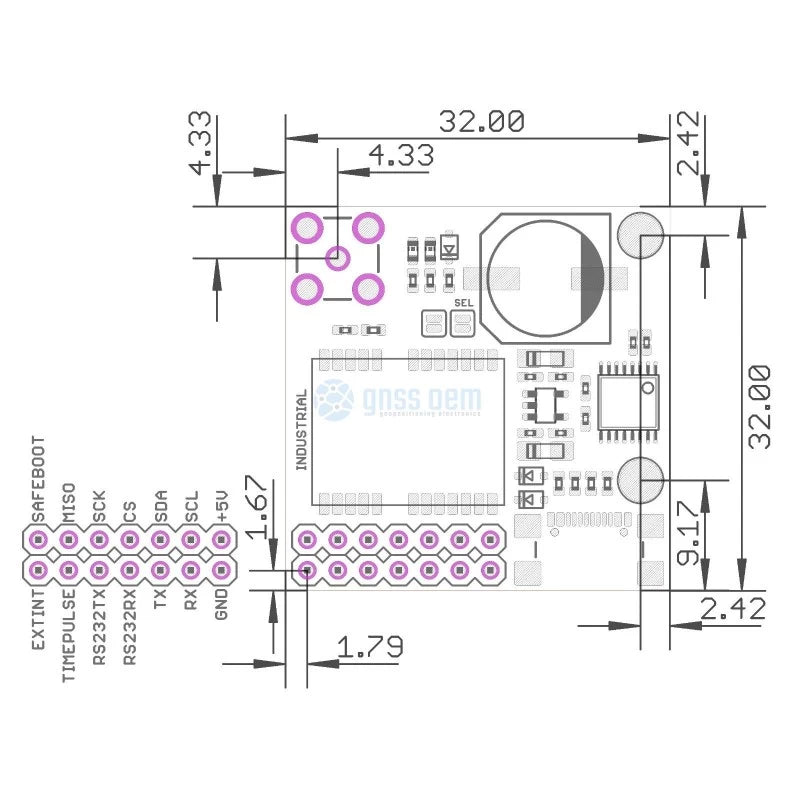

  • Dimensions: 32x32 mm
  • Weight: 3.1 gr.
  • Working temperature: -40 °C ~ +85 °C
  • Storage temperature: -55 °C ~ +95°C
  • Humidity: 95% No condensation
  • Vibration: MIL-STD-810F
  • Shock: MIL-STD-810F
  • Fully assembled and ready to use
  • Can be easy mounted in your case by double sided tape

TECHNICAL SPECIFICATIONS

Receiver ModelNEO-M9V
ChipNEO-M9V
Chip Manufactureru-blox
GNSS BandsL1 · B1I
ConnectivityRS232 · USB · UART
Dimensions32 × 32 mm
Weight3 g
EAN4751046553123
