UM980 RTK HANDHELD SURVEYOR KIT W/ QUICK CHARGE CONNECTIVITY

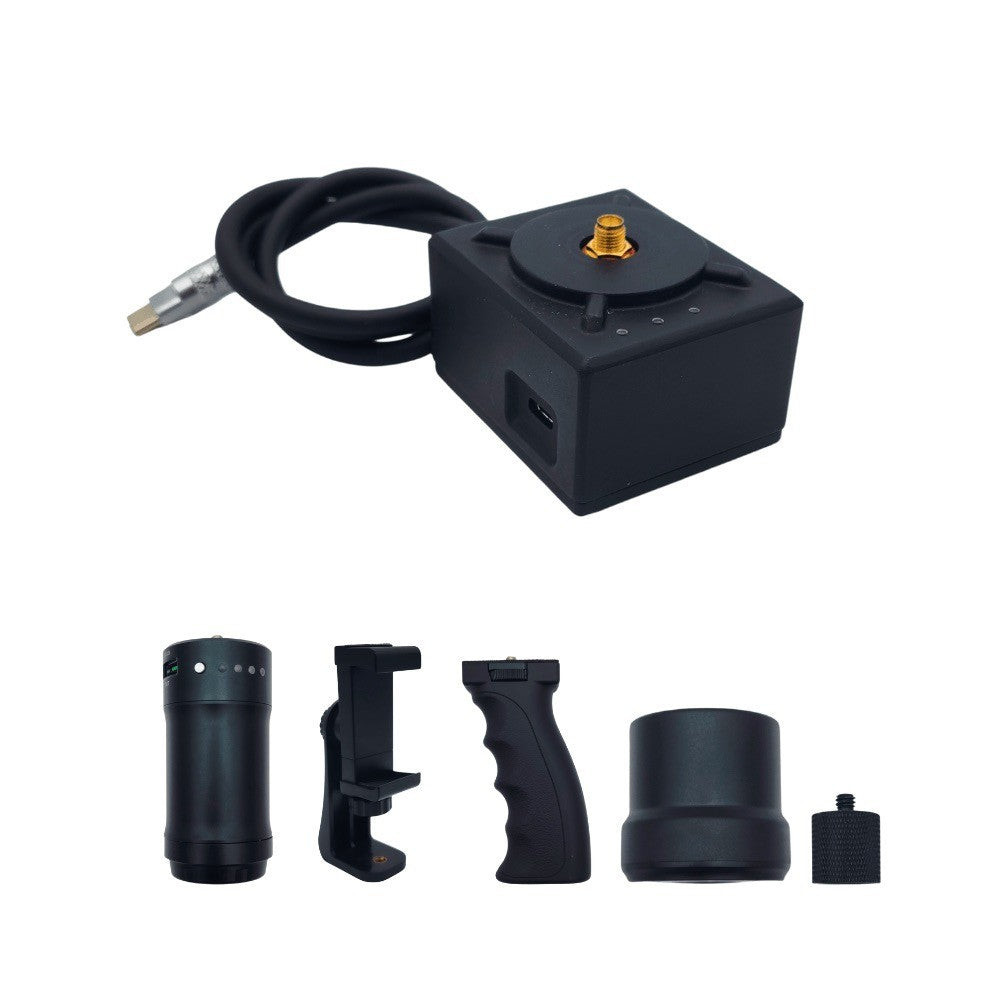

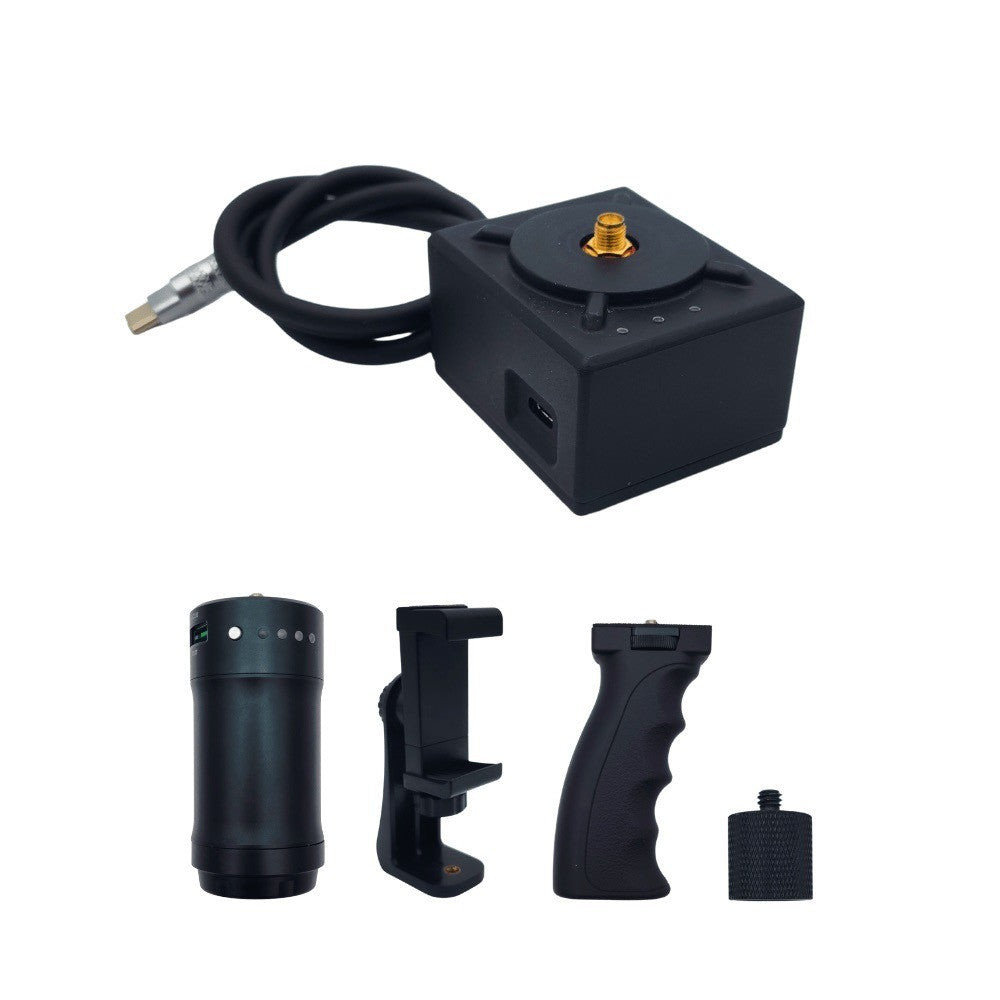

UM980 RTK Handheld Surveyor Kit with Quick Charge Connectivity

This RTK smart antenna is designed for handheld surveying in combination with a smartphone. Our solution differs from others by offering the ability to connect a PowerBank or another external power source for fast charging during operation.

Thanks to the integration of the Unicore UM980 receiver, our device can deliver RTK fixes even under tree canopy and in dense urban environments.

The device we developed can be used in construction, landscape design, cartography (e.g., for OpenStreetMap), and other applications.

Key Features:

• Smartphone holder
• Plastic enclosure with an integrated 30 cm USB-C cable for smartphone connection
• USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
• SMA connector for external antenna input
• Integrated low-noise 3.3 V voltage regulator
• Purple Power LED, green Time pulse LED, orange RTK LED
• Evaluation software: UPrecise Unicore for PC
• Backup supercapacitor
• Mounting: 1/4" photographic tripod, 5/8" threaded survey pin
• Dimensions: 62 × 55 × 35 mm
• Weight: 105 g
• IP55 protection
• Fully assembled, tested, and ready for use

UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver

UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
